HTD Pulley Material and Flange Selection: Choose material and flange arrangement from the actual catalogue configuration and machine duty.
What This Decision Controls
Choose material and flange arrangement from the actual catalogue configuration and machine duty. The decision should be documented with the belt designation, product code or drawing because a timing pulley is part of a drive system. A visual match does not prove tooth compatibility or shaft fit.
Recommended Workflow
Start with the mating belt and drive requirement. Confirm pitch/profile, tooth count and working width. Then check the shaft interface, hub and flange envelope, material and any controlled inspection requirement. For a replacement, measure the old part from both sides and record the belt line relative to a stable machine datum.
Common Errors to Avoid
- Choosing by outside diameter while ignoring the tooth system.
- Assuming that every curvilinear profile with the same nominal pitch is interchangeable.
- Measuring only one side and missing hub projection or an offset belt line.
- Leaving bore fit, keyway, bush code or inspection requirements until after quotation.
- Using a universal belt-tension or tolerance value without the machine and belt design basis.
Use the Guide in an RFQ
Once the key variables are captured, open the HTD product families, compare the relevant application context, or send the drawing and order details through the form below.
Material and Flange Choices Follow the Actual Configuration
Material availability and flange construction can vary within a family as tooth count and construction type change. Use the individual product row before requesting a material or flange arrangement.
If the machine has persistent edge contact or corrosion concerns, document the actual condition. Alignment or shaft movement should be addressed separately from an order-specific material or finish requirement.
Material and Flanges Belong to the Exact Construction Row
Catalogues may change material and flange construction with size. Use the material stated for the selected row. Flanges guide the belt at the pulley edges, but persistent edge contact is also a reason to inspect belt line, alignment and shaft support.
When the decision involves an existing machine, keep measurements, catalogue values and new project requirements separate. This prevents a field measurement from being silently treated as a nominal dimension or a desired change from being mistaken for a standard family feature.
Use the Drawing and Table Together

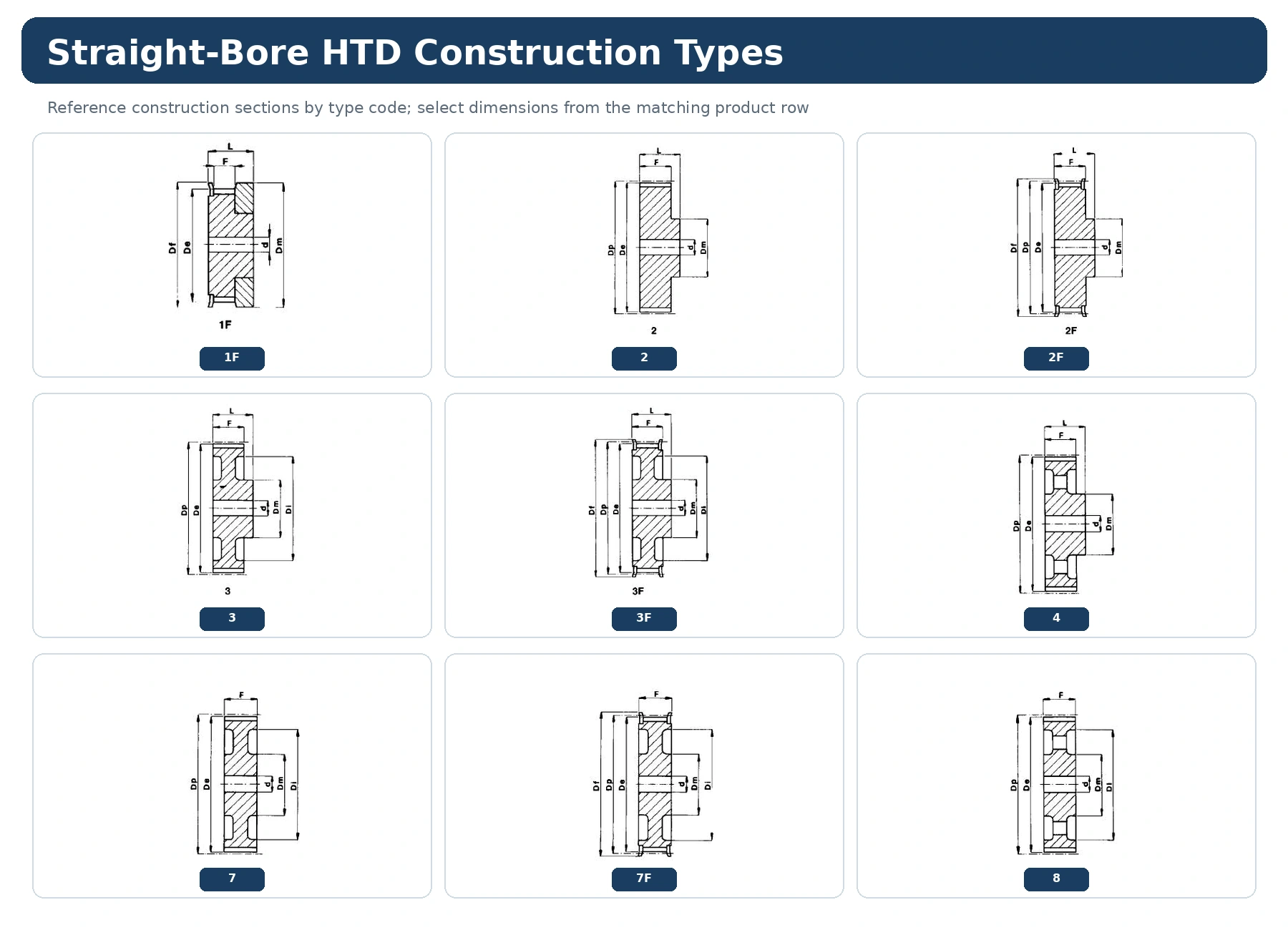

Construction drawings explain the symbols and relationships. The row-specific table provides the actual values for the selected model. Do not scale the illustration or transfer dimensions from another width or tooth count simply because the product looks similar.
Where the catalogue does not control a required fit, runout, tolerance, finish or document, put that requirement on the project drawing or RFQ and make it part of the order review.
Release Checklist
Keep the belt/profile identity, working width, tooth count, mounting definition, quantity and drawing revision on the same technical order line. Add machine duty for a new drive or clear photographs and measurements for replacement work. This gives purchasing a configuration that can be checked instead of a collection of disconnected dimensions.
What This Guide Does Not Replace
This guide helps organize the selection and measurement process; it does not replace the exact product row, belt data or project drawing. If a required power, torque, speed, fit, tolerance or service limit is not stated in the relevant catalogue table or approved drawing, keep it as a design or RFQ input and verify it for the actual drive.
That boundary is useful during procurement because it prevents a general engineering explanation from being quoted later as if it were a guaranteed value for every HTD pulley configuration.
Apply the Material And Flange Review to a Real Machine
Collect exact product code, catalogue material, flange arrangement, environment and any requested finish. Use the catalogue or dimension drawing to name features consistently, then separate measured machine values from catalogue values. The working rule is simple: do not infer material from color or use flanges to compensate for an unresolved alignment problem. If the old component is worn or modified, treat its measurements as field data rather than assuming they are the original nominal dimensions.
For replacement work, compare both front and rear hub relationships and note which face establishes the belt line. For a new design, record the speed relationship, center distance, duty and installation envelope before the product code is selected. This keeps the selection traceable when the drive is serviced later.
Use the Drawing to Close Remaining Gaps
A standard product row can define pitch family, tooth count and many envelope dimensions, but project-specific shaft fits, key details, hub changes, finishes or inspection limits may still require a drawing. Show the machine datum and the dimensions that actually control assembly rather than filling the drawing with uncontrolled reference dimensions.
If two catalogue configurations appear possible, identify what is still unknown and measure that feature directly. This is more reliable than choosing the configuration with the closest outside diameter or the most familiar photograph.
Release Data for Material And Flange Review
Keep the complete product identity with the purchase line: HTD family, width series, tooth count, bore or bush, quantity and the drawing revision where one is used. Add order-specific material, finish, inspection or documentation requirements separately. This makes later replacement work easier because the accepted configuration can be recovered without reconstructing the decision from email history.
Separate Material Choice From Geometry Confirmation
Material and flange decisions should follow the real operating requirement, not a visual preference. Identify the supported material for the selected catalogue row first, then state any project requirement for inertia, corrosion environment, finish, tracking flange arrangement or special inspection. A requested material change can alter machining route and minimum quantity, so it should be reviewed before production release. Do not assume that two pulleys with similar appearance share the same material or flange construction.
