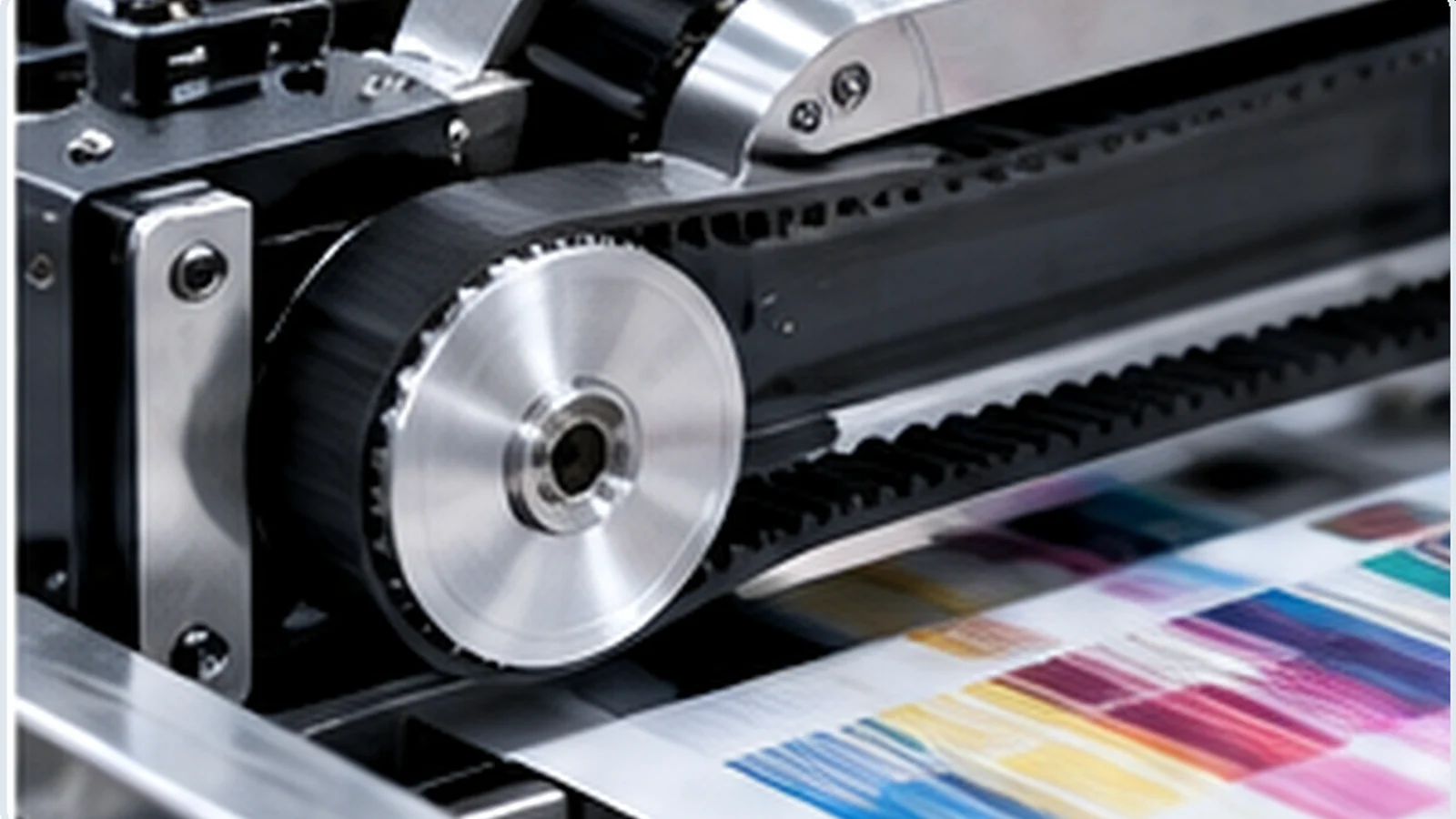

HTD Timing Pulleys for Paper Machinery should be approached as a drive-system decision. The useful starting point is the mating belt and machine interface, followed by tooth count, working width, shaft mounting and duty conditions. This guide explains the checks that help an engineer or buyer turn timing pulley paper machinery into an RFQ that can be verified against a catalogue row or drawing.
Identify the Drive Before Comparing Dimensions
For timing pulley paper machinery, identify the complete belt marking before comparing pulley diameters. HTD is a curvilinear synchronous system and the nominal pitch must stay associated with its profile family. Record the driver and driven tooth counts when an existing ratio must be preserved. For a new drive, document the target speed ratio, driver speed and expected load before choosing tooth counts. This prevents a component-level decision from overriding the machine requirement.
For a replacement project, compare the measured value with the installed belt and machine arrangement before deciding that a catalogue row is equivalent. For a new project, document the design basis so later maintenance teams can understand why the pitch, tooth count and mounting style were selected.
Dimensions That Control the Installation
A pulley can match pitch and tooth count yet still fail to fit the machine because the bore, hub, flange or axial position differs. Measure the shaft interface, belt-face width, hub projection on both sides and the belt line relative to a stable machine datum. Where a taper bush is used, record both the pulley series and bush code. Where a finished bore is required, include fit, keyway and any retaining method on the drawing.
For a replacement project, compare the measured value with the installed belt and machine arrangement before deciding that a catalogue row is equivalent. For a new project, document the design basis so later maintenance teams can understand why the pitch, tooth count and mounting style were selected.
Operating Conditions That Belong in the Selection
The same nominal timing pulley paper machinery component can see very different service depending on the machine. Starts per hour, reversing, shock loading, continuous operating time, temperature, contamination, cleaning and access for tensioning all influence the drive. A compact automation axis emphasizes repeatable motion and controlled alignment, while a conveyor or process machine may emphasize continuous duty and service access. Supply these conditions instead of asking the pulley to be selected from size alone.
For a replacement project, compare the measured value with the installed belt and machine arrangement before deciding that a catalogue row is equivalent. For a new project, document the design basis so later maintenance teams can understand why the pitch, tooth count and mounting style were selected.
Inspection Points Before Installation
Inspection should focus on dimensions that affect the drive: the shaft interface, axial location, tooth condition, face width and any drawing-controlled runout or datum relationship. A generic quality statement does not define acceptance. If a dimensional report, material document or order-specific record is required, identify it before production. During maintenance, watch for flange damage, edge wear, debris and signs that the pulley has moved on the shaft.
For a replacement project, compare the measured value with the installed belt and machine arrangement before deciding that a catalogue row is equivalent. For a new project, document the design basis so later maintenance teams can understand why the pitch, tooth count and mounting style were selected.
Open Questions to Close Before Ordering
What exact HTD profile and width is installed or specified?
What ratio or existing tooth count must be preserved?
What bore, fit, keyway or taper-bush arrangement is required?
How much hub projection and flange clearance is available?
What are the speed, load, starts, reversing and operating hours?
Which drawing, material or inspection records must accompany supply?
What to Send With the RFQ
Send profile, tooth count, belt width, shaft interface, hub/flange details, quantity, destination and a drawing or replacement measurement sketch. Add speed, ratio, load, center distance and environment for a new drive. Review the HTD製品ファミリー使用する 選択ガイド, or compare the relevant application notes.
Paper Handling Requires Belt-Line and Access Awareness
Web-handling and paper-processing equipment can contain long shafts, guards and adjacent rollers that constrain pulley position. Preserve the installed belt line and hub projection when replacing a component.
Capture operating hours, starts and stops, reversal if present, nearby guards and the condition of the shaft support. These details provide the application context for the pulley without turning the page into an unsupported power or life-rating claim.
Document the Operating Zone
State whether the drive is in a dry process area, near dust, or near cleaning and coating operations. The machine environment should inform the engineering review without being turned into an unsupported product rating.
The purchasing record should keep a clear link between the machine requirement and the selected pulley. That means the complete belt or profile identity, tooth count, working width and shaft-interface information remain together with the product code. Any special material, finish, controlled tolerance, marking or report requirement should be stated separately so it cannot be mistaken for a universal feature of the whole family.
Procurement and Documentation
Once the selection is clear, keep the accepted product identity, quantity, destination and drawing revision on the same purchase line. Standard catalogue parts are normally planned around production-quantity minimums, while larger or higher-value items can be reviewed against the practical order value. Qualified new-client samples of 1–5 pieces may be reviewed at sample pricing when the configuration and manufacturing route are suitable.
Mixed-model orders can be consolidated toward a practical order value of about USD 1,500. Special materials and special processes follow the minimum quantity required by that process. Very small one- or two-piece requests are handled only as qualified engineering validation or paid-sample cases rather than retail replacement orders.
Lead time is confirmed after the technical definition is clear. Standard parts are typically planned at 10–25 business days, custom components at 20–45 business days, and project-based assemblies or related equipment at 45–120 business days where applicable. EXW, FOB, CIF and DAP are commonly supported; FCA, CFR, CPT, CIP and DDP can be discussed for suitable shipments. Treat these as planning ranges, not a shipment promise before order review.
A Practical Decision Sequence
Start with web-speed relationship, shaft spacing and contamination/temperature context. Keep the machine requirement separate from the catalogue choice: first identify what the drive must preserve, then compare only the rows or drawings that match that identity. This keeps a familiar-looking pulley from being accepted before its functional interfaces have been checked.
For an existing machine, preserve the original relationship before making changes. For a new design, record the target ratio, operating context and installation envelope so the paper-machine drive definition can be reviewed later without relying on memory or a photograph alone.
Build a Measurement Record
The most useful measurement set contains shaft speeds, tooth counts, pitch family, width, center distance and environment. Mark which values were measured on the machine and which values came from a catalogue or released drawing. When a feature is inaccessible, photograph its relationship to a stable datum and identify it as confirmation-required rather than filling the gap with an assumed value.
Dimension drawings should be viewed at full readable width. Never scale a screenshot and then treat the scaled dimension as a measurement; use the printed value and the correct construction type.
One Failure Mode Worth Avoiding
A common error is treating a wide paper-handling drive as a generic isolated pulley. That can produce a part that appears close in the catalogue yet changes ratio, belt line, mounting or service access. Resolve the conflicting feature before requesting price so the quotation refers to one mechanically coherent configuration.
If two candidate configurations remain possible, send both the machine measurements and photographs and the preferred option. The quotation can then identify which interface still needs confirmation instead of silently converting uncertainty into a specification.
Turn the Technical Choice Into a Quote-Ready Line Item
State the HTD/profile family and complete belt information.
Provide the tooth count, working width and relevant dimension or drawing references.
Define the bore or bush, shaft data, hub projection and belt-line position where applicable.
Add quantity, destination, required documents and the drawing revision used for the request.
When one item above is genuinely unknown, label it for confirmation. A precise open question is more useful than a plausible value that was never measured.
Questions Buyers Commonly Ask
What should be confirmed first?
Confirm web-speed relationship, shaft spacing and contamination/temperature context. That prevents later dimensions from being compared across the wrong product family or installation route.
What information is most useful for a replacement?
Send shaft speeds, tooth counts, pitch family, width, center distance and environment, plus clear photographs before the old pulley is removed. The photographs preserve axial orientation and neighboring clearances that a loose part cannot show.
When should a drawing be used?
Use a controlled drawing whenever the catalogue row does not completely define the shaft interface, hub/flange arrangement, finish, tolerance or inspection requirement that matters to the machine.
Machine Conditions to Record for Paper Machinery
Do not select a pulley from the industry name alone. Record the operating pattern of the actual machine: driver and driven speeds or ratio, torque or power where available, center distance, hours per day, start/stop frequency, reversal, contamination and the available guard/shaft envelope. These details explain the duty without turning a general article into an unsupported product rating.
For maintenance replacement, add the installed belt marking, tooth count, working face, hub projection and shaft interface. If there has been edge wear or tracking trouble, capture the belt line and bearing/shaft condition before altering pulley geometry.
Installation Planning for Paper Machinery
Confirm that the selected pulley can be fitted and removed with the available service access. A hub that is technically compatible can still cause downtime if adjacent bearings or guards block installation. Maintain the intended belt plane and review flange clearance so the belt is guided without using persistent flange contact as a substitute for alignment.
Where washdown, dust, fibers, chips or process residue are present, include the environment in the RFQ. Material and maintenance decisions should be reviewed against the actual configuration and environment rather than copied from another application.
Paper and Web Handling Need Stable Speed Relationships and Serviceable Belt Lines
Paper and web-handling machines often coordinate rollers, feeders or converting stations where a stable speed relationship matters. The pulley specification should therefore stay connected to the mating belt, tooth-count ratio, shaft arrangement and the exact machine station. Industry name alone cannot identify the required pulley.
Before replacing a component, photograph the belt path and record the axial location of the working face. Check for paper dust, moisture or residue only where it actually occurs at the station. Persistent flange polishing or edge wear should trigger an alignment and shaft-position check rather than an automatic assumption that the pulley material is wrong.
For design work, include center distance, speed relationship, duty and service access. These inputs help keep the catalogue row and the machine function connected while avoiding unsupported universal claims about load or lifetime.
Before Restarting the Line After a Pulley Change
After installation, rotate or jog the drive according to the machine maker’s normal safe procedure and observe whether the belt remains centered through the accessible part of the cycle. A new pulley should not be used to force an existing belt sideways against a flange. If the belt immediately migrates toward one edge, recheck shaft position, spacers, bearing condition and pulley alignment before returning the station to normal production.
Paper dust and web-handling residue can also hide the origin of a tracking problem. Clean the inspection area sufficiently to see the pulley faces and mounting interface, then keep the replacement record with the station identifier and belt marking. This makes later maintenance comparisons specific to the same drive instead of relying on a plant-wide pulley description.
Control the Timing Drive Without Treating the Pulley as a Stand-Alone Spare
Paper and web-handling machines often depend on coordinated roller speeds and stable belt lines. The pulley specification should therefore stay connected to the belt family, tooth-count ratio, shaft arrangement and machine station. Catalogue geometry can define the component, but it cannot replace the machine-side requirements for alignment, access and operating context.
Dust, moisture, temperature and maintenance access vary widely across paper machinery, so those conditions should be stated only when they apply to the specific machine. If belt edge wear or flange contact is present, inspect shaft and pulley alignment before ordering a replacement with the same visible dimensions.
Name the roller, section or auxiliary mechanism served by the pulley.
Keep both pulley tooth counts with the machine record.
Measure the installed belt line, hub projection and guard clearance.
Record contamination, wear pattern and any shaft movement before disassembly.
A controlled replacement restores the existing drive relationship unless the project explicitly changes it. If a speed or process change is intended, review the paired pulleys, belt length and surrounding machine timing together.
