HTD Belt and Pulley Matching Guide: Use the complete belt profile and working width to confirm the mating pulley family.
What This Decision Controls
Use the complete belt profile and working width to confirm the mating pulley family. The decision should be documented with the belt designation, product code or drawing because a timing pulley is part of a drive system. A visual match does not prove tooth compatibility or shaft fit.
Recommended Workflow
Start with the mating belt and drive requirement. Confirm pitch/profile, tooth count and working width. Then check the shaft interface, hub and flange envelope, material and any controlled inspection requirement. For a replacement, measure the old part from both sides and record the belt line relative to a stable machine datum.
Common Errors to Avoid
- Choosing by outside diameter while ignoring the tooth system.
- Assuming that every curvilinear profile with the same nominal pitch is interchangeable.
- Measuring only one side and missing hub projection or an offset belt line.
- Leaving bore fit, keyway, bush code or inspection requirements until after quotation.
- Using a universal belt-tension or tolerance value without the machine and belt design basis.
Use the Guide in an RFQ
Once the key variables are captured, open the HTD product families, compare the relevant application context, or send the drawing and order details through the form below.
Start With the Complete Belt Marking
Confirm the intended HTD tooth family and width from the belt before choosing the pulley row. Pitch alone is not enough to approve a replacement across neighboring or legacy curvilinear profiles.
Inspect belt-edge wear, flange contact and shaft position before replacing components. A new pulley will not correct an unresolved alignment or mounting problem.

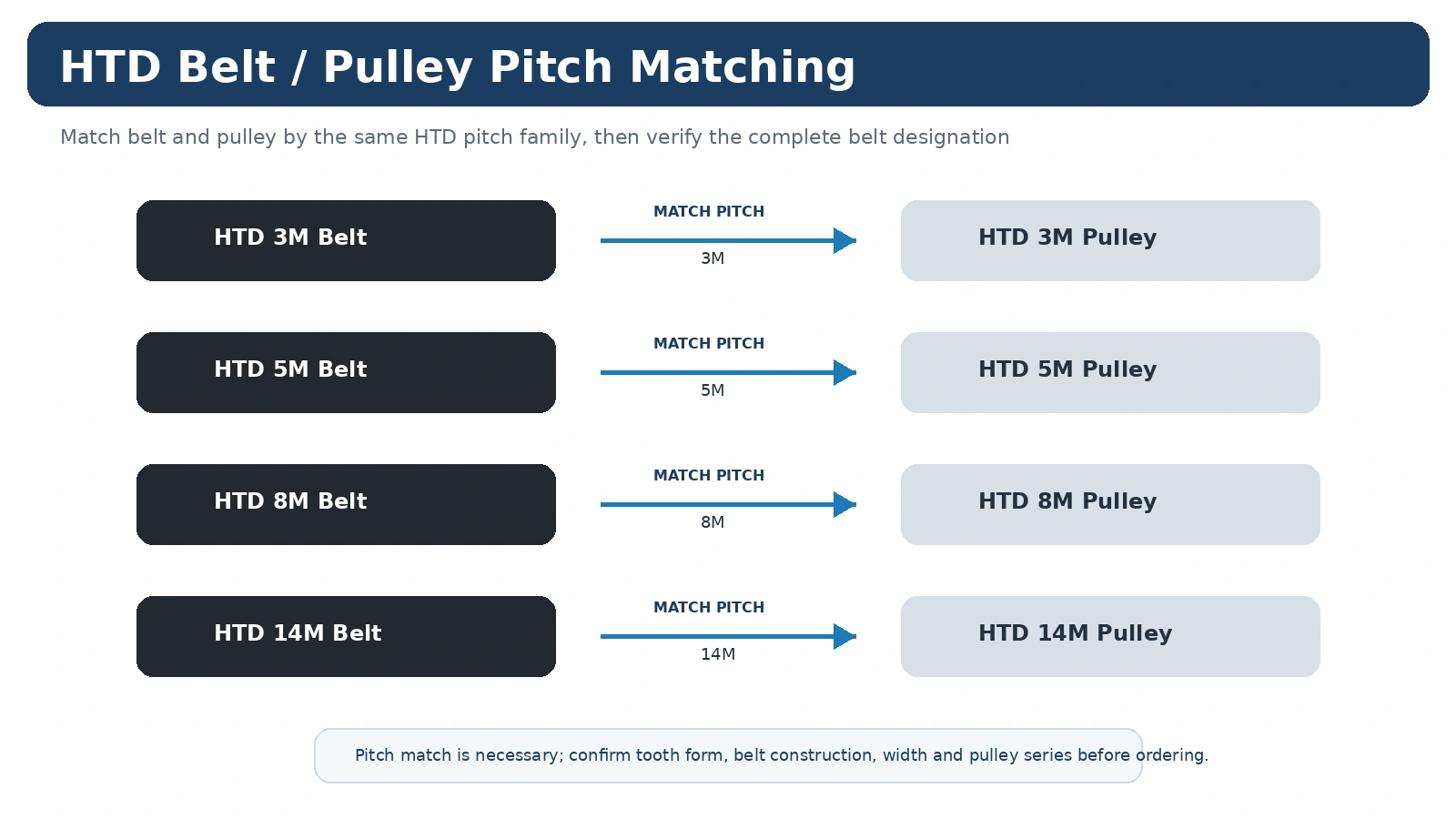

Do Not Match by Pitch Number Alone
The belt and pulley need the same HTD family and compatible width. Keep the complete belt designation with the pulley RFQ. A nominal pitch number does not prove that a different curvilinear tooth family is interchangeable.
When the decision involves an existing machine, keep measurements, catalogue values and new project requirements separate. This prevents a field measurement from being silently treated as a nominal dimension or a desired change from being mistaken for a standard family feature.
Use the Drawing and Table Together
Construction drawings explain the symbols and relationships. The row-specific table provides the actual values for the selected model. Do not scale the illustration or transfer dimensions from another width or tooth count simply because the product looks similar.
Where the catalogue does not control a required fit, runout, tolerance, finish or document, put that requirement on the project drawing or RFQ and make it part of the order review.
Release Checklist
Keep the belt/profile identity, working width, tooth count, mounting definition, quantity and drawing revision on the same technical order line. Add machine duty for a new drive or clear photographs and measurements for replacement work. This gives purchasing a configuration that can be checked instead of a collection of disconnected dimensions.
What This Guide Does Not Replace
This guide helps organize the selection and measurement process; it does not replace the exact product row, belt data or project drawing. If a required power, torque, speed, fit, tolerance or service limit is not stated in the relevant catalogue table or approved drawing, keep it as a design or RFQ input and verify it for the actual drive.
That boundary is useful during procurement because it prevents a general engineering explanation from being quoted later as if it were a guaranteed value for every HTD pulley configuration.
Apply the Belt And Pulley Matching to a Real Machine
Collect complete belt marking, HTD pitch family, working width and pulley tooth count. Use the catalogue or dimension drawing to name features consistently, then separate measured machine values from catalogue values. The working rule is simple: same numerical pitch is not enough when tooth-system identity is uncertain. If the old component is worn or modified, treat its measurements as field data rather than assuming they are the original nominal dimensions.
For replacement work, compare both front and rear hub relationships and note which face establishes the belt line. For a new design, record the speed relationship, center distance, duty and installation envelope before the product code is selected. This keeps the selection traceable when the drive is serviced later.
Use the Drawing to Close Remaining Gaps
A standard product row can define pitch family, tooth count and many envelope dimensions, but project-specific shaft fits, key details, hub changes, finishes or inspection limits may still require a drawing. Show the machine datum and the dimensions that actually control assembly rather than filling the drawing with uncontrolled reference dimensions.
If two catalogue configurations appear possible, identify what is still unknown and measure that feature directly. This is more reliable than choosing the configuration with the closest outside diameter or the most familiar photograph.
Release Data for Belt And Pulley Matching
Keep the complete product identity with the purchase line: HTD family, width series, tooth count, bore or bush, quantity and the drawing revision where one is used. Add order-specific material, finish, inspection or documentation requirements separately. This makes later replacement work easier because the accepted configuration can be recovered without reconstructing the decision from email history.
Close the Belt Identity Before Release
Escalate the enquiry when the belt marking is incomplete, the machine uses a legacy curvilinear profile, or the working width cannot be confirmed from the installed drive. Send the complete belt code, measured pitch evidence, tooth count, face width and photographs showing the belt seated on the existing pulley. The technical review should resolve profile identity first; shaft fit and commercial details come afterwards. A matching pitch number by itself is not enough to approve interchangeability.
